2.3 The Büchi Acceptance Condition

The Büchi Acceptance Condition is given as a set of accepting states $F$.
A run of a Büchi automaton is accepting if some state from this set occurs infinitely often.

Infinite word

For an infinite word $\alpha$ over $\Sigma$, an Infinity Set of $\alpha$ is denoted as:
$$\text{Inf}(\alpha) = \lbrace\sigma\in\Sigma\mid\forall m\in\mathbb{N}.\exists n\in\mathbb{N}.n\geq m \text{ and } \alpha(n)=\sigma\rbrace$$

Meaning that $\text{Inf}(\alpha)$ is a set of all letters $\sigma$ from the alphabet $\Sigma$, so that
for all $m$, you can always find $\sigma$ as the n-th letter of $\alpha$ when there exists an $n$ where $n\geq m$.

This denotes the set of all letters of $\Sigma$ that occur infinitely often in $\alpha$.

Büchi Condition

To express the meaning of “some state from the set of accepting states is reached infinitely often“, we can rewrite our accpeing condition $Acc$ into Büchi Condition $\small\text{BÜCHI} \normalsize(F)$. Here, $\small\text{BÜCHI} \normalsize(F)$ is a set of infinite word:

$\textbf{Definition 2.4. } \text{ The } \textit{Büchi Condition } \small\text{BÜCHI} \normalsize(F)\text{ on a set of states }F\subseteq Q\text{ is the set}$

$$\small\text{BÜCHI} \normalsize(F) = \lbrace\alpha\in Q^\omega \mid \text{Inf}(\alpha) \cap F \neq \varnothing\rbrace$$

$\text{An automaton }\mathcal{A}=(\Sigma,Q,I,T,Acc)\text{ with }Acc=\small\text{BÜCHI} \normalsize(F)\text{ is called a }\textit{Büchi automaton.}\newline \text{The set }F\text{ is called the }\textit{set of accepting states.}$

Constrcution of Complete Büchi Automaton

$\textbf{Theorem 2.1. } \textit{For every Büchi Automaton }\mathcal{A},\text{ there is a complete Büchi Automaton }\mathcal{A}’ \newline \textit{such that }\mathcal{L}(\mathcal{A}) = \mathcal{L}(\mathcal{A}’)$

Example

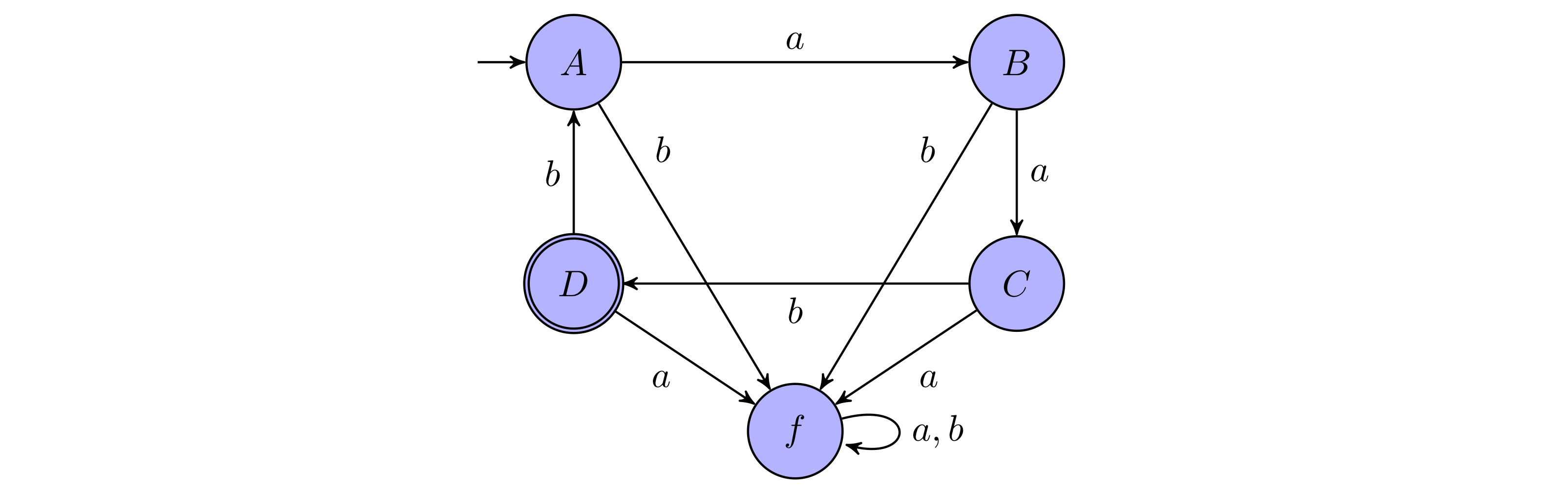

Let $\mathcal{A}$ be the automaton from Example 2.1 with Büchi acceptance condition $\small\text{BÜCHI}\normalsize (\lbrace D\rbrace)$. The language of the automaton consists of a single word:
$$\mathcal{L}(\mathcal{A})=\lbrace aabbaabbaabb\dots\rbrace$$

For a Büchi Automaton $\mathcal{A} = (\Sigma,Q,I,T,\small\text{BÜCHI} \normalsize(F))$,
we define the complete Büchi Automaton $\mathcal{A’} = (\Sigma,Q’,I’,T’,\small\text{BÜCHI} \normalsize (F’))$ using:

• $Q’$ = $Q \cup \lbrace q_f\rbrace$ where $q_f$ is a fresh state
• $I’$ = $I$
• $T’$ = $T \cup \lbrace (q,\sigma,q_f) \mid \nexists q’ . (q,\sigma,q’)\in T\rbrace\cup\lbrace (q_f,\sigma,q_f)\mid\sigma\in\Sigma\rbrace$
• $F’$ = $F$

Explained in Human language

First, we add a fresh state $q_f$ the set of state $Q$ without changing the initial and accepting states.

A complete Büchi Automaton requires every states must have transitions for every letters in the alphabet.
So for each states orginally in $Q$, we construct new transitions that the letters are not yet used by the state.
(which is $\nexists q’ . (q,\sigma,q’)\in T$)

Finally, for all transitions from the fresh state are self transitioning, and they include all letters.
(which is $(q_f,\sigma,q_f)\mid\sigma\in\Sigma$)

Formal Proof

• The runs of $\mathcal{A’}$ are a superset of those of $\mathcal{A}$.

  • During the construction of $\mathcal{A’}$, we have not removed any original transitions, but adding new fresh states.

• Furthermore, on any infinite input word, the accepting runs of $\mathcal{A}$ and $\mathcal{A’}$ are the same.

  • If $\mathcal{A}$ accepts, $\mathcal{A’}$ also accepts because $\mathcal{A’}$ is a superset.
  • If a run reaches new fresh states $q_f$ stays in $q_f$ forever, and
  • since $q_f\notin F’$, such a run is not accepting.

Summary

A complete deterministic automaton may be viewed as a total function from $\Sigma^\omega$ to $Q^\omega$.
A complete (possibly nondeterministic) automaton produces at least one run for every input word.

---
